C-Z PURLIN MACHINE

Fully automatic customized C/Z purlin making machine details :

For C purlin: width: 80-450mm height: 80-150mm

For Z purlin: width :80-450mm height: 80-150mm

  • Coil thickness:1.2-6mm Q195~235, hot-zinc coils& Hot Rolled coils
  • Working speed: 10-12m/min (not containing punching and cutting time )
  • Forming roller: 18steps
  • Leveling roller:5steps (up 2 and down 3)
  • Feeding & guiding: 2 sets ,4 rollers
  • Material of rollert: GCr15, quenched
  • Main motor: 15KW
  • Hydraulic power: 7.5 KW
  • Transmission: Transmission by Chains 1.2Inch double line
  • Main dimension: 11000(L) x 1400(W) x 1400(H)mm3
  • Total weight: 14000kg
  • One machine can produce differenct C/Z Purlin throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
  • C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
  • This line main forming drive adopt reducer motor and frequency conversion control, speed control

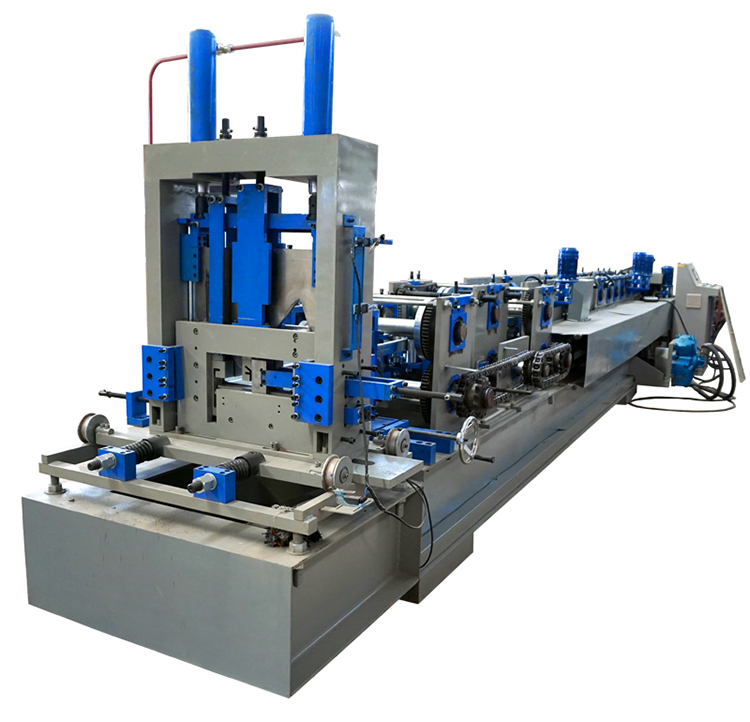

CZ PURLIN MACHINE

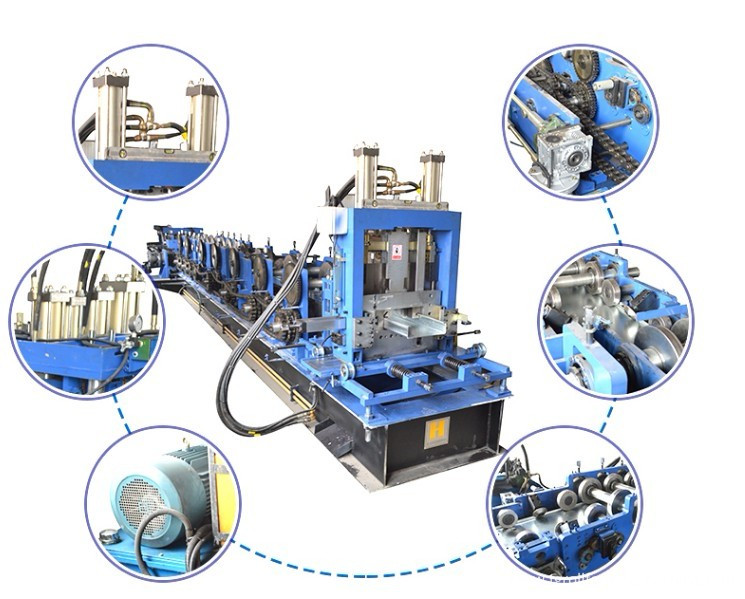

CZ PURLIN MACHINE
