Wholesale Price for Urban Fence Roll Forming Machine CE Certificated crash barrier roll forming machine export to Cook Islands Importers

Share to:
    Unit Price: USD 67000 / Set/Sets
    Payment Type: L/C,T/T,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

In the past few years, our organization absorbed and digested state-of-the-art technologies equally at home and abroad. Meanwhile, our enterprise staffs a team of experts devoted towards the growth of Expressway Guardrail Machine With Best Quality,Logo Printed Guardrail Crash Barrier Machine,Customized Highway Guardrail Machine. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

Wholesale Price for Urban Fence Roll Forming Machine CE Certificated crash barrier roll forming machine export to Cook Islands Importers

Our factory are located in Cangzhou City, Hebei province with experience of machine manufacture about more than 10 years. Factory supply many different types ofmachines like: C Channel Roll Forming Machine, Rack Roll Forming Machine, Fence Post Machine, Z Purlin Machine, ect. Machines all designed by our engineer, and customized as per clients' requirement. Besides, lately we set up some production lines like: Anti-collision Beam Production Line, Animal Husbandry Production Line, Culvert Pipe Production Line, Please feel free to contact us if any interests.


Equipment Description

1. Profile Drawing and Products for Reference :

highway guardrail machine

highway guardrail machine


2. The Chart of Process flow:

De-coiler---Leveling--Punching--Roll forming---Hydraulic Cutter-Output Table

highway guardrail machine




3. The equipment including :

No

Name

Set

1

                                         De-coiler

  1

2

Leveling

  1

3

Roll forming machine

  1

4

Hydraulic cutting

  1

5

PLC control system

  1

6

Pump station

  1

7

Output table

  1




4. Technical specification and details of c channel machine :

                   Name

                Introduction

             Picture for reference

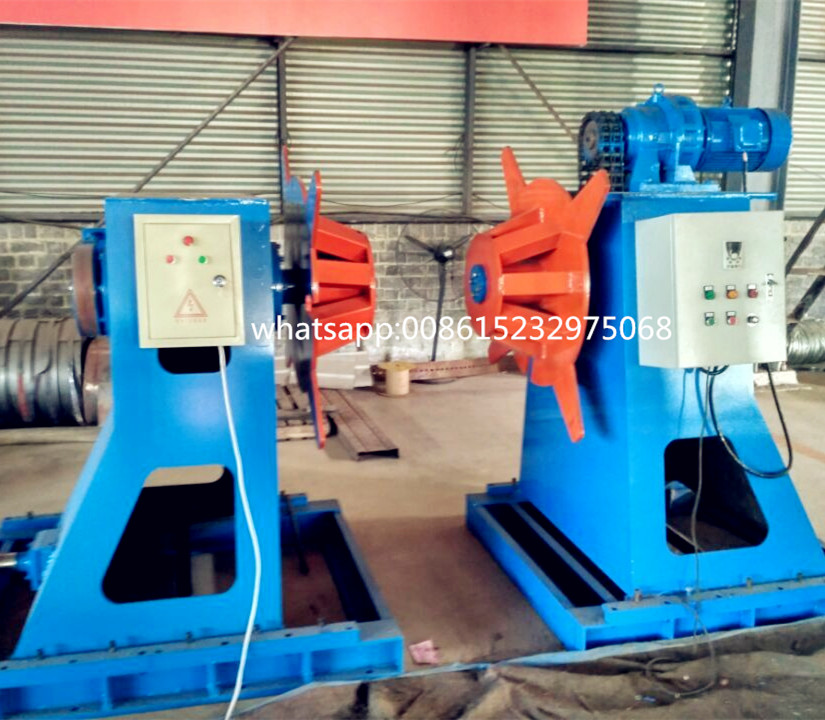

10T Automatic Decoiler



Inner diameter:460~510mm

Outer diameter:1000mm

Max.Capacity: 3T;

Manual power expands the coil inner surface;

Raw material: Galvanized sheet,

Material thickness: <2 mm,

Color: Blue (or base on customer request)

Dimensions:700mm*700mm*1000mm

 decoiler











Forming Machine















Forming stations: about 14 Rows,

Roller material: Gcr15 air-hardening hardness of HCR58-62 ,

Shaft material: 45# steel precision machined conditioning treatmennt,

Shaft diameter: ¢75,

Main Engine power: 15 KW with cycloidal reducer

Voltage :380 v 3 phase,

Capacity: 8-15m/min,

Transmission type: Chain driving,

Dimension: *15000*1400mm*1000,

 highway guardrail machine











Cutting Device



















Cutting: hydraulic cutting; quenching HRC58-62

Cutting style: automatic style

Cutting die material: Cr12 Mov.









 hydraulic cutting















PLC control system



















Brand optional: Panasonic, Mitsubishi,Siemens,Delta

Frequency Control system with touch screen,

Dimension: 700*700*1000mm,

User interface, button labels and literacy should be in English or as per required,

Control the start and the stop of whole machine,

 PLC control









Pump station

















From Shanghai Tuojiang

It supplies the power for the hydraulic cutter.

All hydraulic accessories are all use Chinese famous brand products.

Hydraulic motor power: 4.5KW



 pump station











Output table





















Weldedpipes,




output

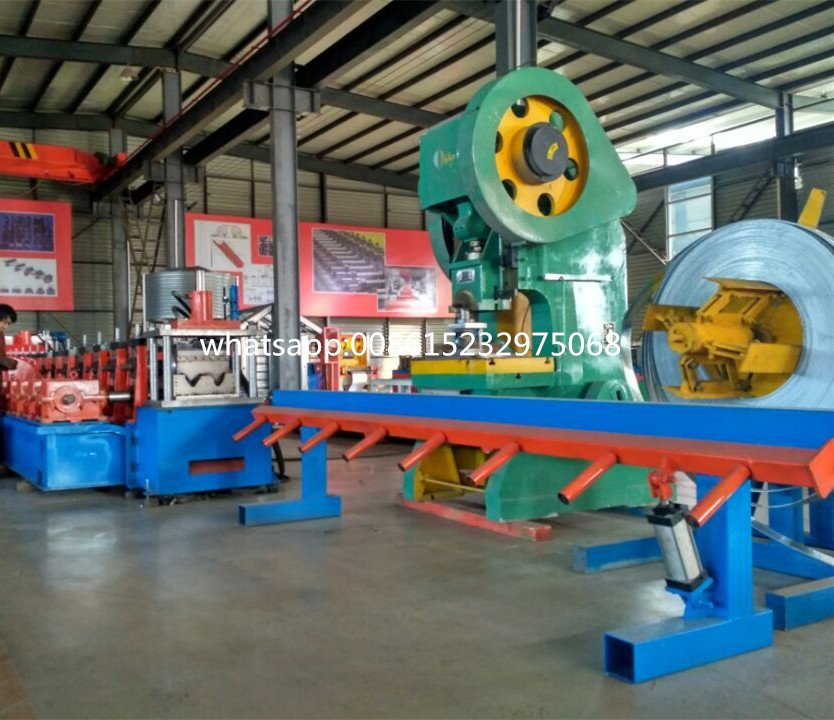

5. Machine Overview:

highway guardrail machinehighway guardrail machine

highway guardrail machinehighway guardrail machine

highway guardrail machinehighway guardrail machine

rollers

rollers

shaft 1

6. Package:

Loading 1,Loading 2,



7. Customers visiting:

20180405163711


4




turkey customer

UAE customer


8. Payment terms and after-sale service:

 1) FOB Tianjin

 2) Payment: 30% T/T deposit, and balance the 70% remained before shipping.

 3) Delivery time: 50 working days.

 4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.

 5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.

 6) Installation and training:

1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.

 2. Without visiting, we will send you user manual to teach you to install and operate.

 3. COST OF INSTALLATION:

The buyer should pay the installation charges (USD 80 one man one day). To the seller`s appointed account by T/T before the seller`s technicians go to the buyer`s factory. The buyer pays the seller`s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.

"With a sound business credit, excellent after-sales service and modern manufacturing facilities, we have earned an excellent reputation among our customers across the world for CE Certificated crash barrier roll forming machine. The product will supply to all over the world, such as: Bhutan,San Marino,Samoa. If you need to have any of our merchandise or have other items to be produced make sure you send us your inquiries samples or in depth drawings. Meanwhile aiming to develop into an international enterprise group we look forward to receiving offers for joint ventures and other cooperative projects.
